KG520/KG520H open-pit down-the-hole drilling vehicle is an equipment upgraded in response to the national requirements for diesel engine emissions.

Equipped with Yuchai non-road four-cylinder engine, it meets the national requirements for emissions and environmental protection.

Adopt folded edge crawler frame and engineering four-wheel one belt, crawler leveling, plunger travel motor, increase working pressure and increase its climbing performance.

Increase the pitch and arm cylinders to meet the use requirements of its extreme position.

Increase the rotary torque and speed, use propulsion motor and chain propulsion to improve lifting force and reliability.

Increase the dust collector to improve the dust collection effect.

The cover adopts thickened profile folding to increase its strength and rigidity.

Add lifting rings to facilitate loading and unloading.

The KG520H open-pit down-the-hole drilling vehicle adds a dust collector, which is more environmentally friendly and reliable when working.

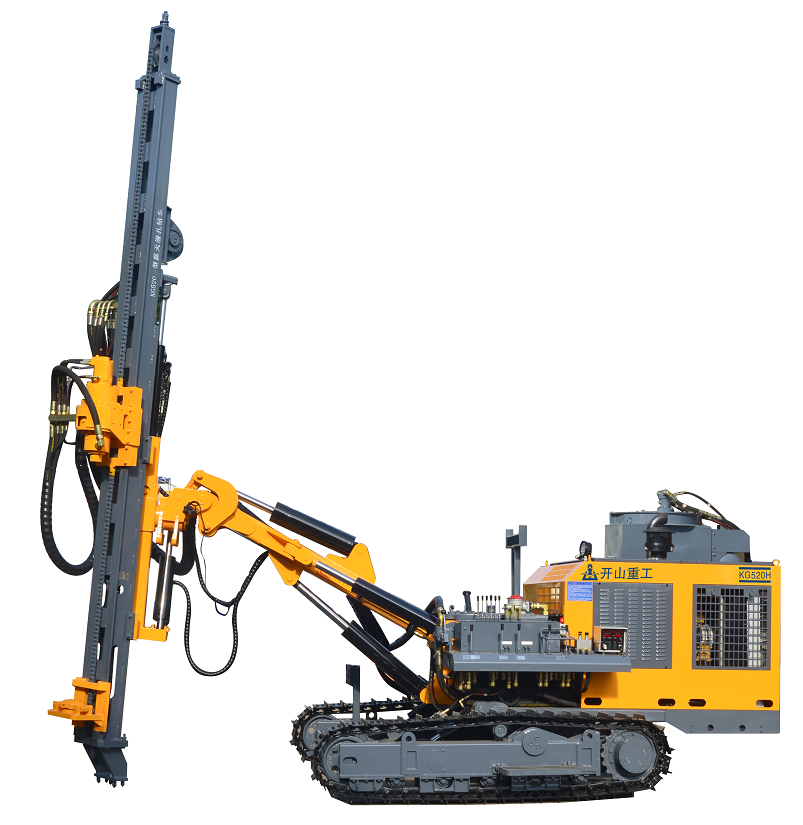

产品2-KG520图片

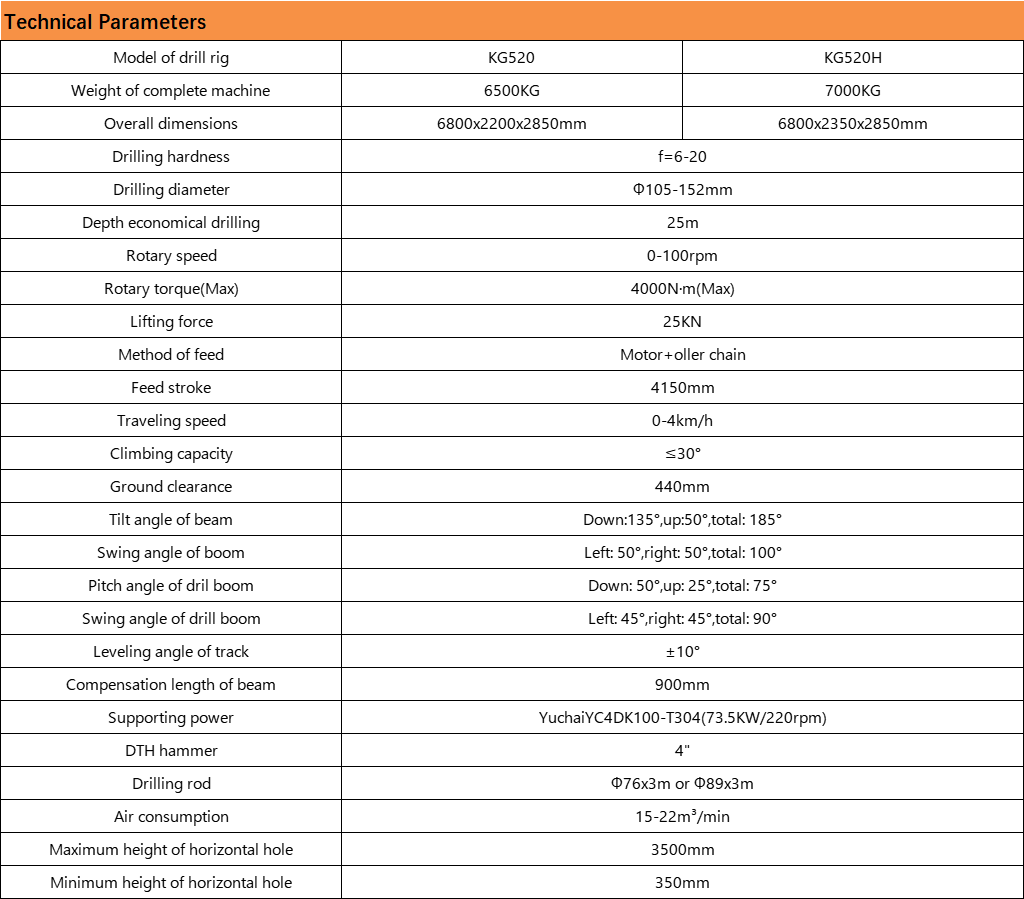

产品2-KG520和KG520H参数
