KG420T/KG420TH open-pit down-the-hole drilling vehicle is an upgraded and improved equipment in response to the national requirements for diesel engine emissions.

Equipped with Yuchai non-road four-cylinder engine, it meets the national requirements for emissions and environmental protection.

It adopts folded edge crawler frame and engineering four-wheel one belt, adds crawler leveling, plunger travel motor, increases working pressure, increases rotary torque and speed, increases lifting cylinder and chain, and improves lifting force and reliability.

The cover adopts thickened profile folding to increase its strength and rigidity.

Add lifting rings to facilitate loading and unloading.

KG420TH open-pit down-the-hole drilling vehicle adds dust collector, which is more environmentally friendly and reliable when working.

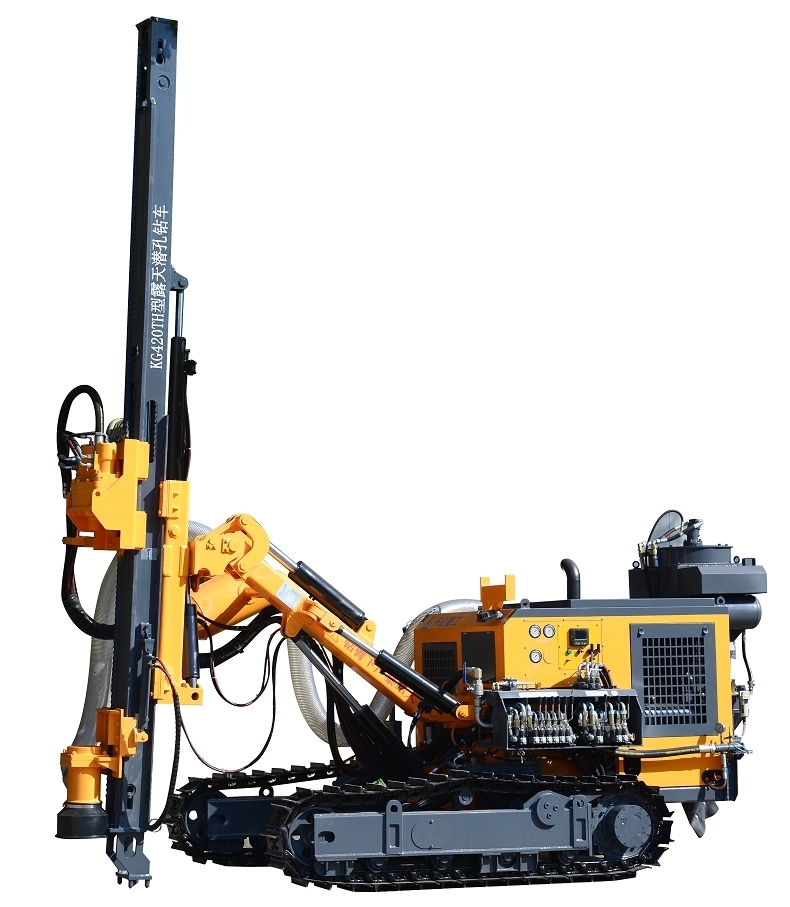

产品1-KG420图片

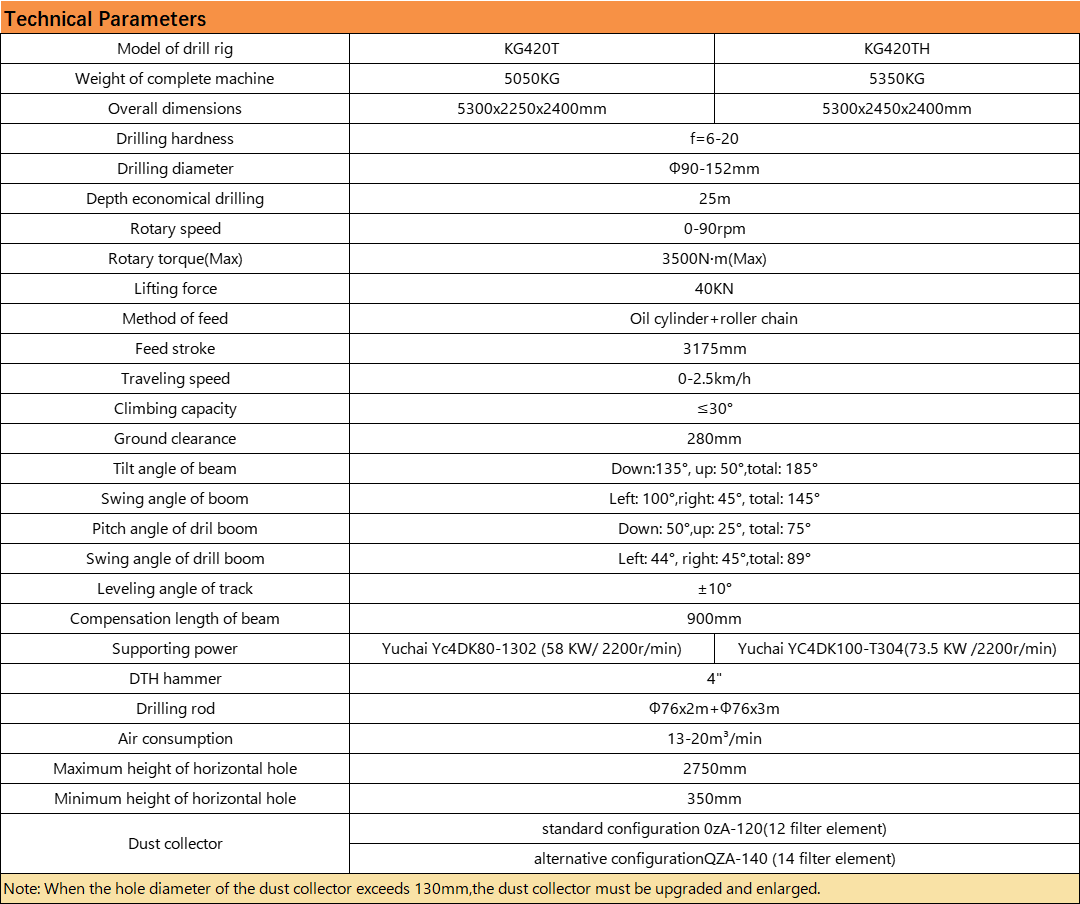

产品1-KG420T和KG420TH参数
